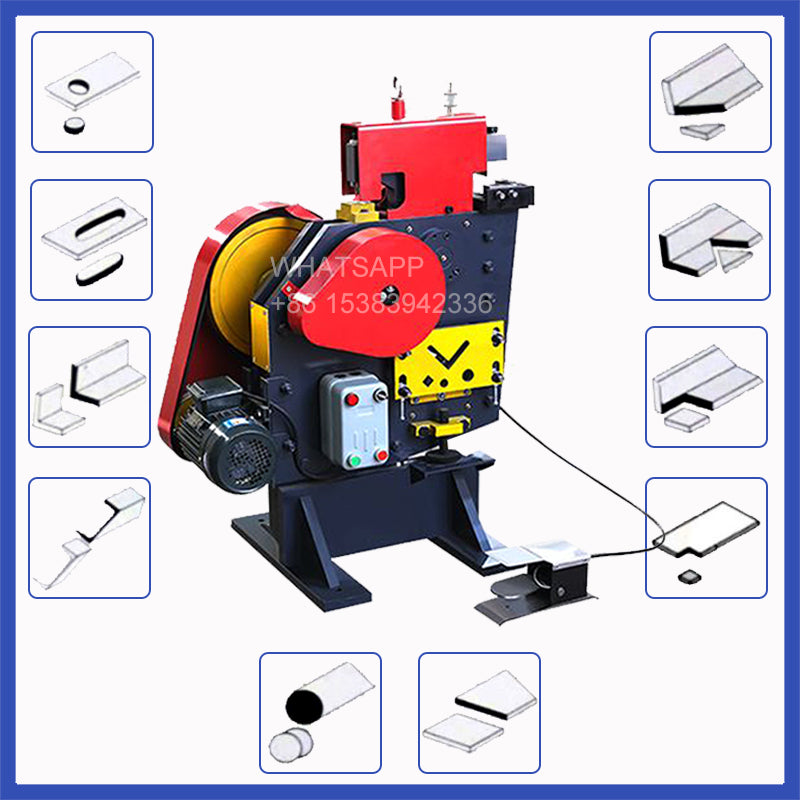

Punching And Shearing Machine QA32-8B

Model: Punching and shearing machine QA32-8B
Punching force: 360KN
Shearing knife length: 200mm
Tool travel: 27mm
Number of folds: 30 per minute
Motor power: 2.2KW
Working voltage: 380V
Motor frequency: 50HZ
Overall dimensions: 900*500*1100mm length, width and height
Weight: 500KG
Maximum punching hole: diameter 22*8mm
Maximum punching oval hole: 40*17*8mm
Maximum cutting angle steel: 75*75*8mm
Maximum cutting channel steel: 100*8mm
Maximum cutting round steel: diameter 30mm
Maximum cutting square steel: 20*20mm
Maximum cutting angle: 50*50*5mm
Maximum shearing plate: 150*8mm
